Ex. 5: Hierarchical buses and cascaded interrupts

Group:

{% include ‘group.md’ %}

1. Questions

1. of 2: How big (in kB) is the address range for each of the 16 TL-UL devices inside your student module ?

The student_device_peri is in the address range 0x10000000 to 0x10FFFFFF. Therefore, 24 bits are available for addressing. Splitting that into 16 equal parts, we have 4 bits of device number and 20 bits left for the device address. This equates to 2^21 = 2048 KiB of address space per device.

It should be mentioned that in the default testbench configuration, this would be 4 bits and therefore 2^5 = 16 Bytes of address space per device.

2. of 2: Which address bits did your 1:N bus multiplexer decode ?

Of the full 32 bit address, the first 8 bits are the area our mux covers, the next 4 bits are the device address to be decoded, and the last 20 bits are for device internal addressing. The Mux therefore decodes the bits [23:20].

3. of 6: How many cycles pass after one of the outermost gray LEDs light up until the application writes to the mode register ?

During that time, 3560ns or 178 cycles pass.

4. of 6: Which problems occur in the specified implementation when the change frequency of the running light is too high ? How would a more robust (maybe even elegant?) solution would look like ? Of course the running light itself may be modified as well.

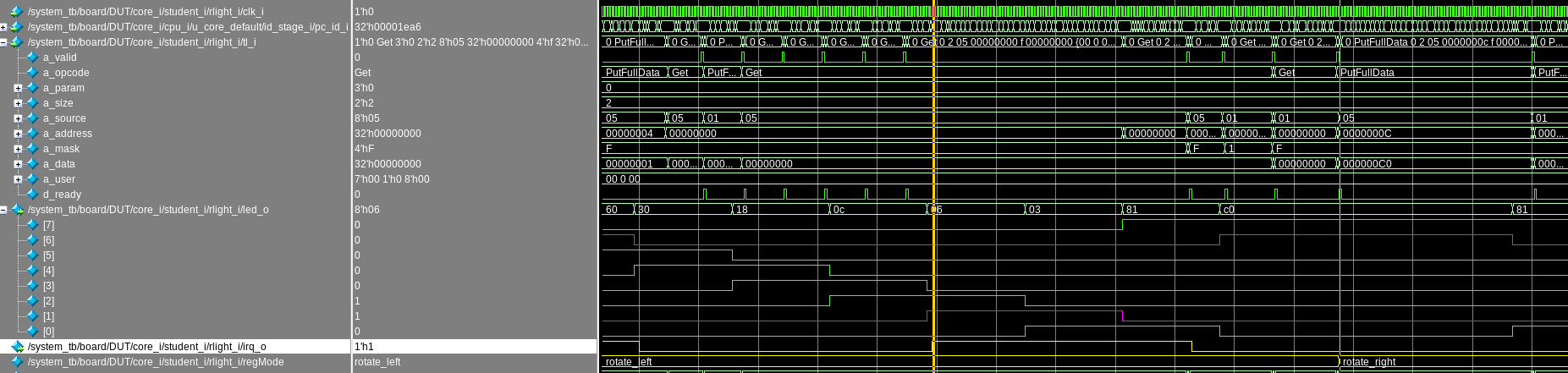

When the running light is set too fast, the interrupt routine is too slow to change the direction in time before the outermost LED is lit. The screenshot below shows that preparing for the actual interrupt routine (saving all registers to the stack) adds quite a big reaction delay. After that, the 4 register/TL transactions to the rlight to change the mode (shown at the second cursor) add an additional delay.

Possible solutions include:

• Writing an optimised assembly irq function could increase the performance on the software side. Maybe even a custom IRQ handler that doesn’t require saving all registers.

• Adding addional functionality to the rlight module to support a ping pong animation within a given mask, would be the most performant and a more elegant solution.

• Lowering the amount of rergister/TL transactions required to change the direction of the rlight within the irq handler would also improve the maximum speed.

Once one would get into the speeds that would cause irqs to be triggered during an execution of a previous irq, one would also need to think about ways to handle that. Even though the current irq implementation is a bit slower than the software polling method, both are well suited for a simple running light.

5. Adding IRQ support to the memcpy bus master. How would the IRQ signal be generated ? Which basic steps would the IRQ handler perform ?

The IRQ should be fired once the memcpy is completed, so the signal would be determinated by comparing the number of open writes to the memory area to 0. A handler might then provide a callback to the software for proceeding to work with the generated copy, such that the software does not need to run idly while awaiting the memcpy to complete.

2. Source texts

See appendix

2.2 IRQ-Ctrl register interface

student_irq_ctrl.en_all @ + 0x0 0 = suppresses all outgoing interrupt requests Reset default = 0x0, mask 0x1
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0   irq_enable
Bits	Type	Reset	Name	Description
0	rw	0x0	irq_enable	0 = suppresses all outgoing interrupt requests

student_irq_ctrl.mask @ + 0x4 Mask register for enabling and disabling specific interrupts Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 irq_mask... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...irq_mask
Bits	Type	Reset	Name	Description
31:0	rw	0x0	irq_mask	mask(n) = 1 <=> irq(n) enabled

student_irq_ctrl.mask_set @ + 0x8 Shadowed Mask register for only enabling specific interrupts Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 irq_mask_set... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...irq_mask_set
Bits	Type	Reset	Name	Description
31:0	wo	0x0	irq_mask_set	mask(n) = 1 <=> set bit n in 'Interrupt Mask Register'

student_irq_ctrl.mask_clr @ + 0xc Shadowed Mask register for only disabling/clearing specific interrupts Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 irq_mask_clr... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...irq_mask_clr
Bits	Type	Reset	Name	Description
31:0	wo	0x0	irq_mask_clr	mask(n) = 1 <=> clear bit n in 'Interrupt Mask Register'

student_irq_ctrl.status @ + 0x10 Register that holds information about which interrupt is asserted Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 irq_status... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...irq_status
Bits	Type	Reset	Name	Description
31:0	ro	0x0	irq_status	status(n) = 1 <=> irq(n) is asserted

student_irq_ctrl.irq_no @ + 0x14 Register that holds the number Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 irq_lowest... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...irq_lowest
Bits	Type	Reset	Name	Description
31:0	ro	0x0	irq_lowest	if n < IRQ_MAX: lowest irq number that is asserted; if n == IRQ_MAX: no pending IRQ

student_irq_ctrl.test @ + 0x18 Enable test register functionality Reset default = 0x0, mask 0x1
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0   irq_test_enable
Bits	Type	Reset	Name	Description
0	rw	0x0	irq_test_enable	0: Regular operation; 1: all irq inputs are wired to the test_irq register

student_irq_ctrl.test_irq @ + 0x1c set IRQ input lines if in test mode Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 irq_test_mask... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...irq_test_mask
Bits	Type	Reset	Name	Description
31:0	rw	0x0	irq_test_mask	see 'Test IRQ Enable Register'

2.6 Updated interrupt controlled running light register interface

student_rlight.status @ + 0x0 Status Reset default = 0x0, mask 0xff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0   pattern
Bits	Type	Reset	Name	Description
7:0	ro	0x0	pattern	Bits of currently displayed LED pattern

student_rlight.mode @ + 0x4 LED animation mode Reset default = 0x3, mask 0x3
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0   val
Bits	Type	Reset	Name	Description
1:0	rw	0x3	val	0 = stop, 1 = right-to-left, 2 = left-to-right, 3 = ping-pong

student_rlight.speed @ + 0x8 Speed register for LED animation Reset default = 0x0, mask 0xffffffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 divisor... 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 ...divisor
Bits	Type	Reset	Name	Description
31:0	rw	0x0	divisor	Divisor of the clock used for animation updates

student_rlight.pattern @ + 0xc Current write address Reset default = 0x0, mask 0xff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0   pattern
Bits	Type	Reset	Name	Description
7:0	rw	0x0	pattern	Bits of initial LED pattern

student_rlight.masks @ + 0x10 Masks to trigger IRQ when the displayed pattern intersects them Reset default = 0x0, mask 0xffff
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 mask 1 mask 0
Bits	Type	Reset	Name	Description
7:0	rw	0x0	mask 0	Mask that triggers interrupt 0
15:8	rw	0x0	mask 1	Mask that triggers interrupt 1

student_rlight.interrupt_status @ + 0x14 Indicates whether interrupts are active. Read to acknowledge interrupts Reset default = 0x0, mask 0x3
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16   15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0   interrupt 1 interrupt 0
Bits	Type	Reset	Name	Description
0	ro	0x0	interrupt 0	IRQ triggered by mask 0
1	ro	0x0	interrupt 1	IRQ triggered by mask 1

3. Wave Views

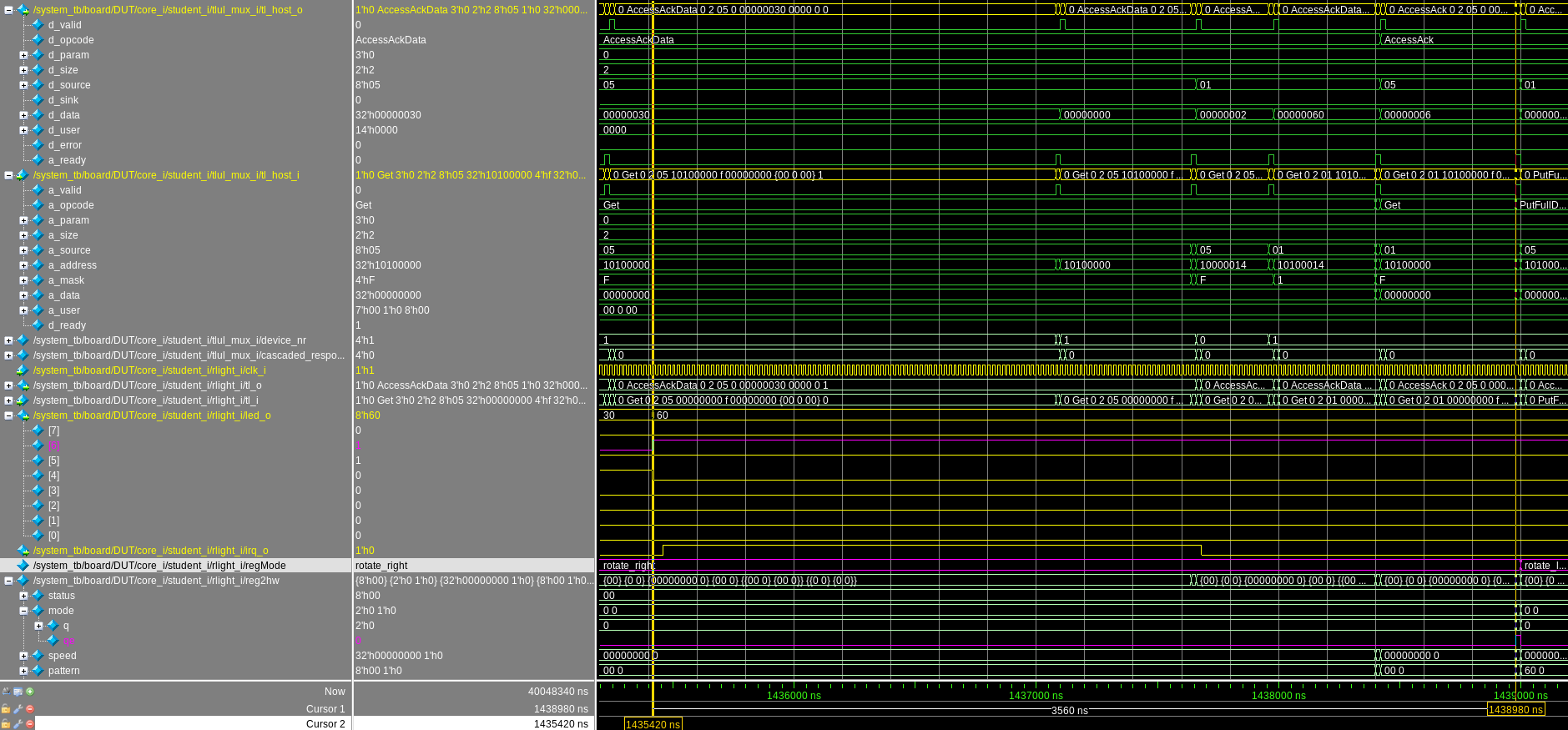

In the following screenshot, the desired signals are displayed in yellow and the start/end trigger signals (led_o[6], mode.qe) are displayed in magenta. The cursors mark the relevant rising edges.

{% include ‘appendix.md’ %}
