FPGA Board

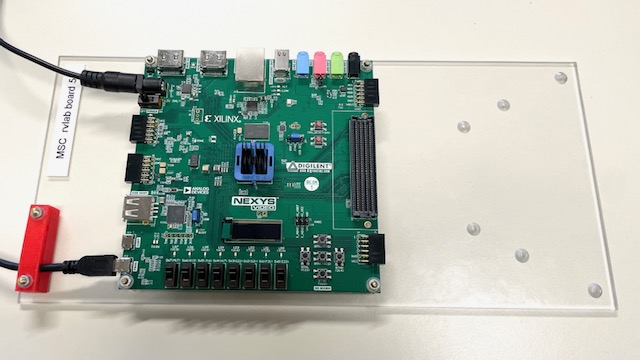

Nexys Video FPGA board mounted in acrylic glass
The RISC-V Lab uses the Digilent Nexys Video board with the Xilinx Artix-7 XC7A200T FPGA (see Resources).
See FPGA Upload for how to load FPGA bitstreams and programs to the board.
External Components
Following components are already used in the predefined rvlab codebase:
USB-JTAG Prog via FT2232 (bitstream loading & RISC-V debug)
100 MHz crystal oscillator (clock source for MMCM)
512 MB DDR3 DRAM (external volatile memory attached to TL-UL bus)
The following table lists components and connectors that can be used for student project I/O. The signals are available in the userio_fpga2board_t and userio_board2fpga_t structs defined in src/rtl/rvlab_fpga/pkg/top_pkg.sv and connected to the student module.
Component |
Signal Names |
Notes |
|---|---|---|
8x LEDs |
led |
|
8x user switches |
switch |
|
OLED mini display |
oled_… |
|
Audio Codec |
ac_… |
|
USB-UART FT232R |
uart_… |
(2) |
HDMI sink / input |
hdmi_rx_… |
|
HDMI source / output |
hdmi_tx_… |
|
USB HID Host (PS/2) |
ps2_… |
|
Ethernet PHY (RGMII + MDIO) |
eth_… |
|
Micro SD card |
sd_… |
|
Pmod JA (200 ohm protected) |
pmod_a_… |
|
Pmod JB (unprotected) |
pmod_d_… |
use with caution! (1) |
Pmod JC (unprotected) |
pmod_c_… |
use with caution! (1) |
(1) Pmod JB and JC must be used with caution: There is no series protection, so driving a signal both externally and from the FPGA can result in permanent damage to the FPGA!
(2) Use JTAG for data transfer if possible.
Following components should not be used in the project:
Pmod JXADC, reason: uses VADJ voltage rail
5x user buttons (cross-shaped), reason: prevent mechanical damage
FMC LPC connector, reason: board will be added in the future
QSPI Flash, reason: for on-board memory, use volatile DDR3 instead.
DisplayPort source, reason: HDMI is easier to work with, DisplayPort requires additional Xilinx IP
